Computer Spring Making Machine , Cnc Torsion Spring Machine Two Axes

Brand Name : HYD

Model Number : HYD-208

Certification : CE / IS09001

Place of Origin : Dongguan,China

MOQ : 1 Set

Price : Negotiable

Payment Terms : Negotiable

Supply Ability : 30 Sets One Month

Delivery Time : 25 Days

Packaging Details : Standard Seaworthy Plywood Case

Wire Diameter : 0.15-0.80mm

Machine Model : Two Axes

Servo Motor : Japan Brand

Optional Tools : Torsion attachment,spring length gauge

Port : Shenzhen,China

Production Capacity : 30 sets one month

Tranning : Available

Contact Now

Super Servo Motor Controlled Spring Former Max Spring Wire Diameter 0.80mm

Two- axes computer spring coiling machine

Model

HYD-208

Diameter

0.15-0.8mm

Maximum diameter

20mm

The fastest production speed

550pcs/min

Wire feeding length

Unlimited

Wire feeding speed

1200m/min

Delivery spools

Y Axis 1kw

Camshaft

X Axis 1kw

Screen display

Color/Chinese/English

Minimum order value

X:0.1 Y:0.01mm

Machine size

900×850×1600mm

Machine weight

400kg

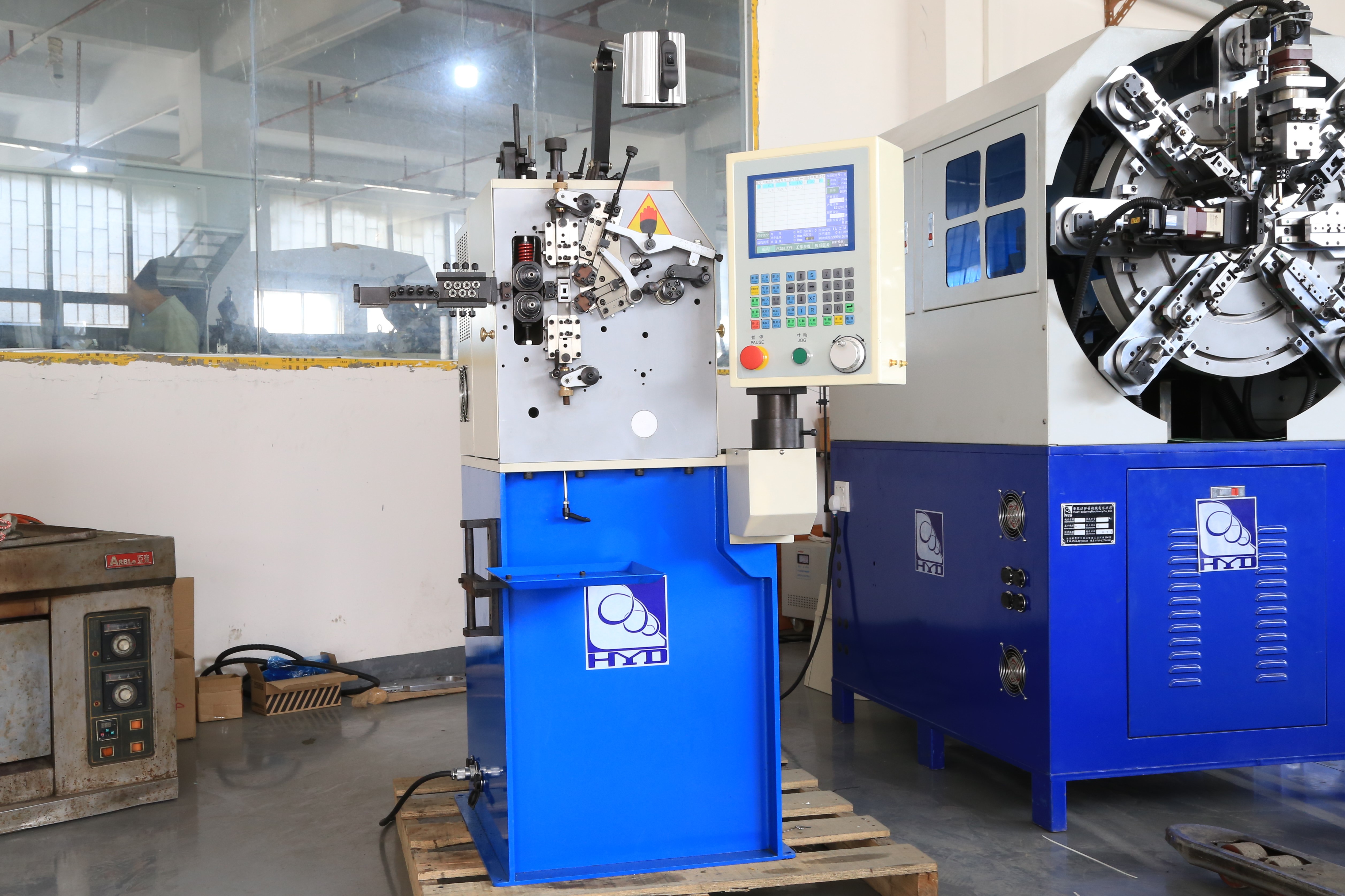

Machine Desciption:

HYD-208 spring coiling machine has two axes,wire feed axis and cam axis,which were controlled by the

computer,they can work separately or synchronously. The wire feed axis controls wire feed, and the cam

axis drives cam to form the spring by controlling outside diameter, space and cutting blade. This machine is

suitable for producing a variety of right or left-handed torsion springs, special shaped wires and springs etc.

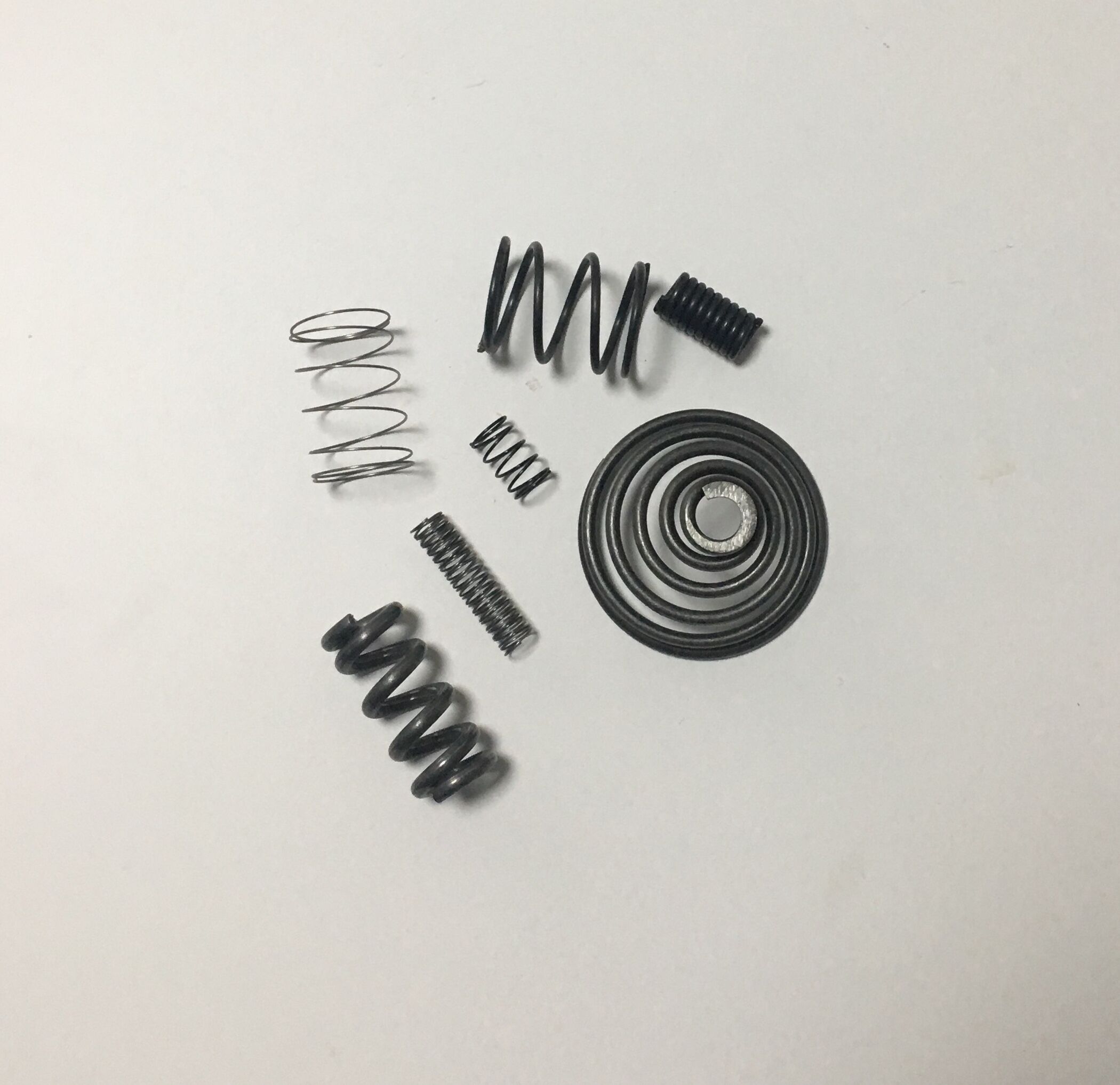

Samples:

Computer Spring Making Machine , Cnc Torsion Spring Machine Two Axes

Why HYD

• Independent R&D ability

• 15 years experience in spring machine industry

• Quick and patient reply for Bfore&After sale service

• Tranning in factory is available,spring set-up in machine for shipment
