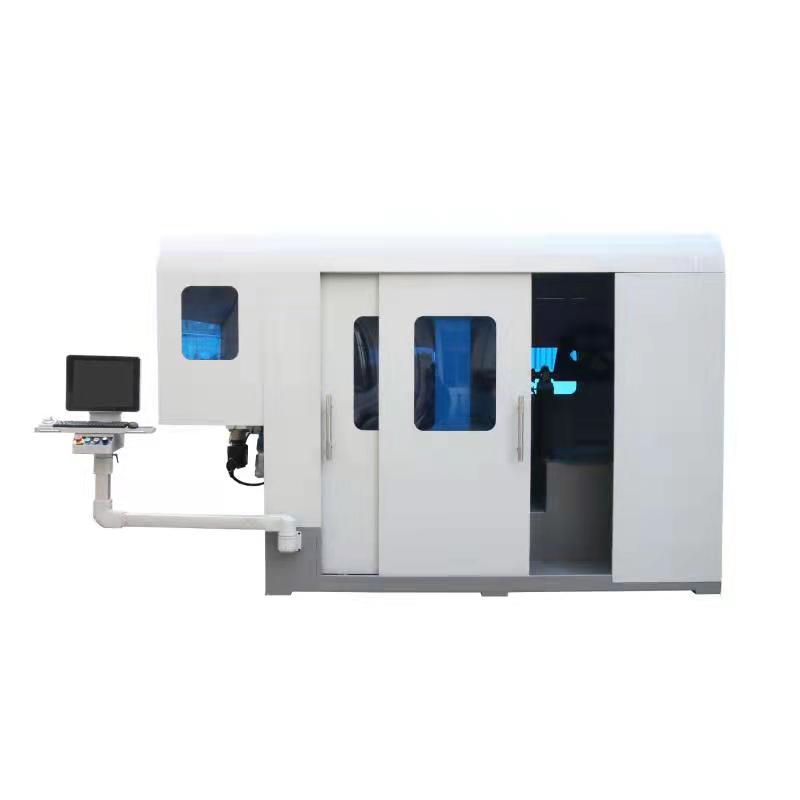

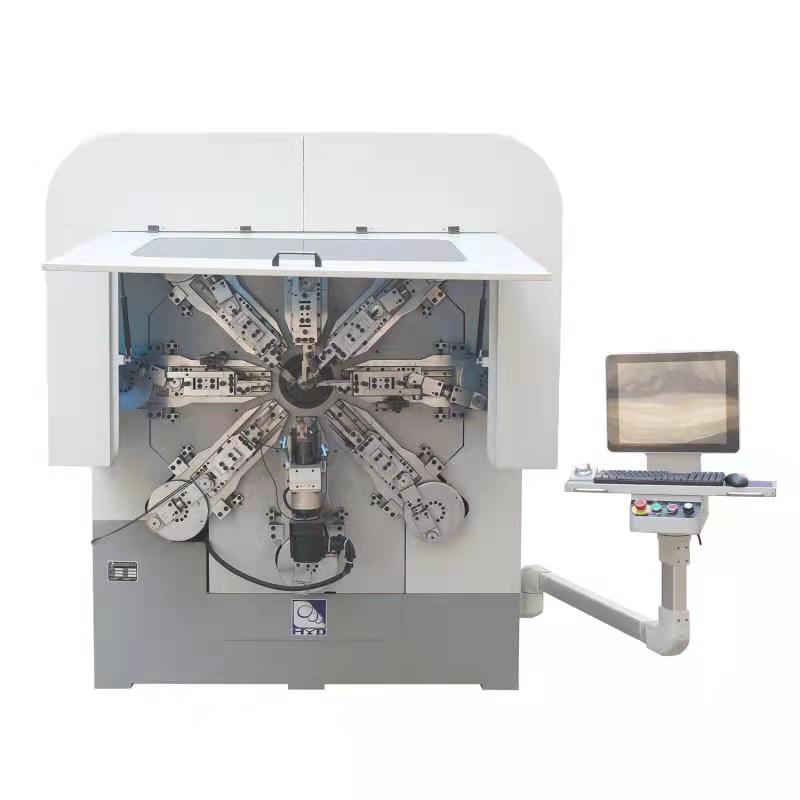

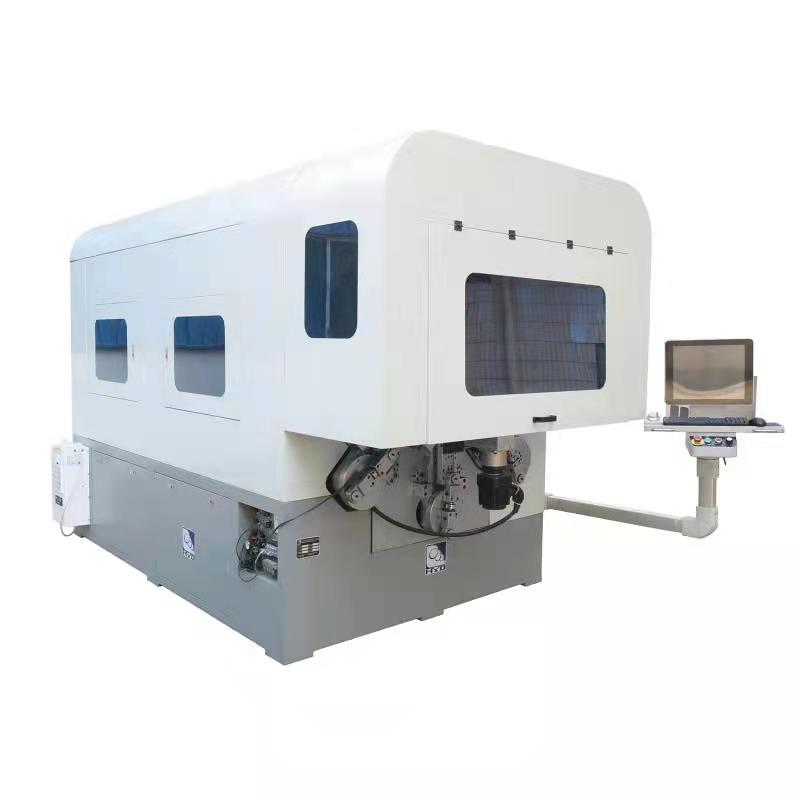

Automatic Spring Machine Camless CNC Spring Making Machine For Iron Steel Aluminum Wire
Parmeters
| Model | HYD-60T-12A |
| Number of Axes | 12 Axes |
| Wire Diameter | Low carbon Steel:3-8mm High carbon Steel:2-6mm |
| Lead Rail | Distance of 130mm |
| Wire Feeding Number | 4 pairs |
| Max Wire Feed Speed | 80m/min |
| Max Error | +/-0.1(Length) |
| Servo Motor Power | 50.7kw |
| Reducer | 11pcs |
| Min Angel Length | 4 Time wire Diameter |
| Machine Dimension | 2600*1400*2050mm |
| Machine Weight | 4500kg |
Machine Features
1. Using the link rocker design, independent single-axis servo motor control, simple and convenient operation, Shaped spring may be placed by the angle of the tooling to reduce setup times, increase
production efficiency.
2. Taiwan double roller guides, good wear resistance, more durable to maintain accuracy. Dual track Design, you can adjust the left and right, more flexible adjustment.
3. Taiwan helical gear reducer, the intensity more secure.
4. Taiwan control system, more effectively ensure the mechanical and computer synchronization.
5. To Line separating the motor and the power transmission line, reducing delivery line box load, increasing the turn angle of the line, effective Ensure the accuracy and line feed transfer lines.
Product made by our spring machine
Q: What information should customer provide to get wire Forming machine offer from HYD? A: Please you usually share below info to check suitable machine.
* Specific drawing
* Wire material
* Additional function you need with the machine ,such as chamfering, threading, etc.
We will check best solution and offer for your requests after checking details.
Our Service
1. Help you choose the most suitable machine.
2. Making the machine according to your requests.
3. Give you machine's details for helping you use the machine much better.
4. One year warranty.
5. Free repair whole using life without extra charge
